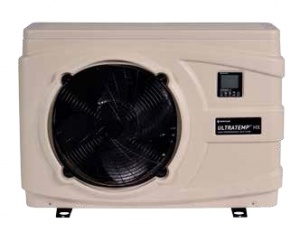

Pentair ULTRATEMP HX 17KW Heat Pump UTHP-17-HX

Pentair ULTRATEMP HX 9.5KW Heat Pump (UTHP-9-HX) The ULTRATEMP High Performance range of Heat pumps from Pentair Water offer unbeatable value accross their domestic range of horizontal  (HX) and verticle (VX) Discharge heat pumps.  Compared to Gas and Electric element Pool Heaters he ...Read more



  • Description
  • Specifications

Pentair ULTRATEMP HX 9.5KW Heat Pump (UTHP-9-HX)

The ULTRATEMP High Performance range of Heat pumps from Pentair Water offer unbeatable value accross their domestic range of horizontal  (HX) and verticle (VX) Discharge heat pumps.  Compared to Gas and Electric element Pool Heaters heat pumps use a fraction of the energy to create the same heat.

Heating Guide for 55,000lt Pool (36sqm surface area) without a Thermal Blanket @24 degrees air:

This heater will provide 12 months swimming @28 Degrees if used in conjunction with a thermal pool blanket.
This heat pump will run approximately 10 Hours a day to maintain 28 Degrees. Total expected running cost per annum to maintain 28 Degrees @24 Cents / KWH is $1342.00 Per Annum.

 **Electrical connection is not included in all quoted prices**

Pentair ULTRATEMP Series unique features:

• Heating and cooling capability
• Automatic 4 way valve – auto defrost system
• Electronic expansion valve (EEV2) – Increased energy savings by efficient fuel flow
• Intuitive LCD Touch screen
• Hydrophilic evaporator coating
• Titanium threaded heat exchanger – 30% increase in heat transfer
• Flow switch and high pressure cut out to ensure additional safety and protection
• PVC and powder coated zincalume corrosion resistant cabinet
• Low noise fan blades
• Horizontal airflow

Pentair Ultratemp Heat Pumps Pentair Heat Pumps Gold Coast Pool Heating Gold Coast

ABGAL Heatshield 5mm thermal pool blanket with heavy duty roller:

We only use ABGAL Heatshield thermal pool blankets as they are the leader in thermal pool blanket market. Manufactured using a 5mm thick, double reinforced, multi-layered construction, the water proof, closed-cell polyethylene foam gives the blanket its superior thermal resistance qualities. The impermeable base layer gives it its chemical resistance.
Reinforced side bindings give the thermal pool an extra long life by preventing delamination and fraying on the sides.  Used in conjuction with Hydrotools HRST Heavy Duty pool blanket rollers this combo is unbeatable.


Heat Pump Specifications:

• 9.5 KW Heat output rating @ 24 degrees air and 26 degrees water
• 8.24 KW Heat output rating @ 15 Degrees air and 24 degrees water
• 1.53 KW Power input @ 24 Degrees air
• 6.20 C.O.P at 24 Degrees air
• Unit Footprint (L x W) 945 x 417mm
• Side Discharge
• Rotary Compressor
• Titanium Heat Exchange
• 51db Noise Rating
• Refridgerant Type R410A
• Single Phase 240v Power 10 amps Max Running current

Abgal Heat Shield Thermal Blanket and HydroTools HRST Roller Thermal Pool Blankets Gold Coast Pool Heating Gold Coas



 Pentair Ultratemp Heat Pump Features Pentair Heat Pumps Gold Coast Pool Heating Gold Coast

Installation Requirements:

  2 x 40mm pvc Tee's

  1 x 40mm 3 way valve

  1 x Boost pump (for independent heating set up) * not required in all installations.

  1 x Electrical connection  (not included in all quoted prices).

 Heat Pumps Gold Coast






 Pentair Heat Pumps Gold Coast



$8580.00
